Conductive Reel Storage System
The conductive reel storage system is a new and flexible bench mount storage system, allowing for 7″ and 15″ component reels. There is a choice of specification too, being manufactured from coated corrugated fibreboard as standard, or from a conductive corrugated plastic for clean room or heavy wear environments.
The storage system is available in single, double and triple module units and the division spacing can be 18mm or 32mm to suit the application. The units are supplied fully assembled and configured to suit your exact requirements.
- Description
Description
Features and Benefits
- ESD Safe
- Cost effective and reliable
- Choice of materials for different applications
- Durable, tough and hardwearing
- Can be manufactured to bespoke requirements

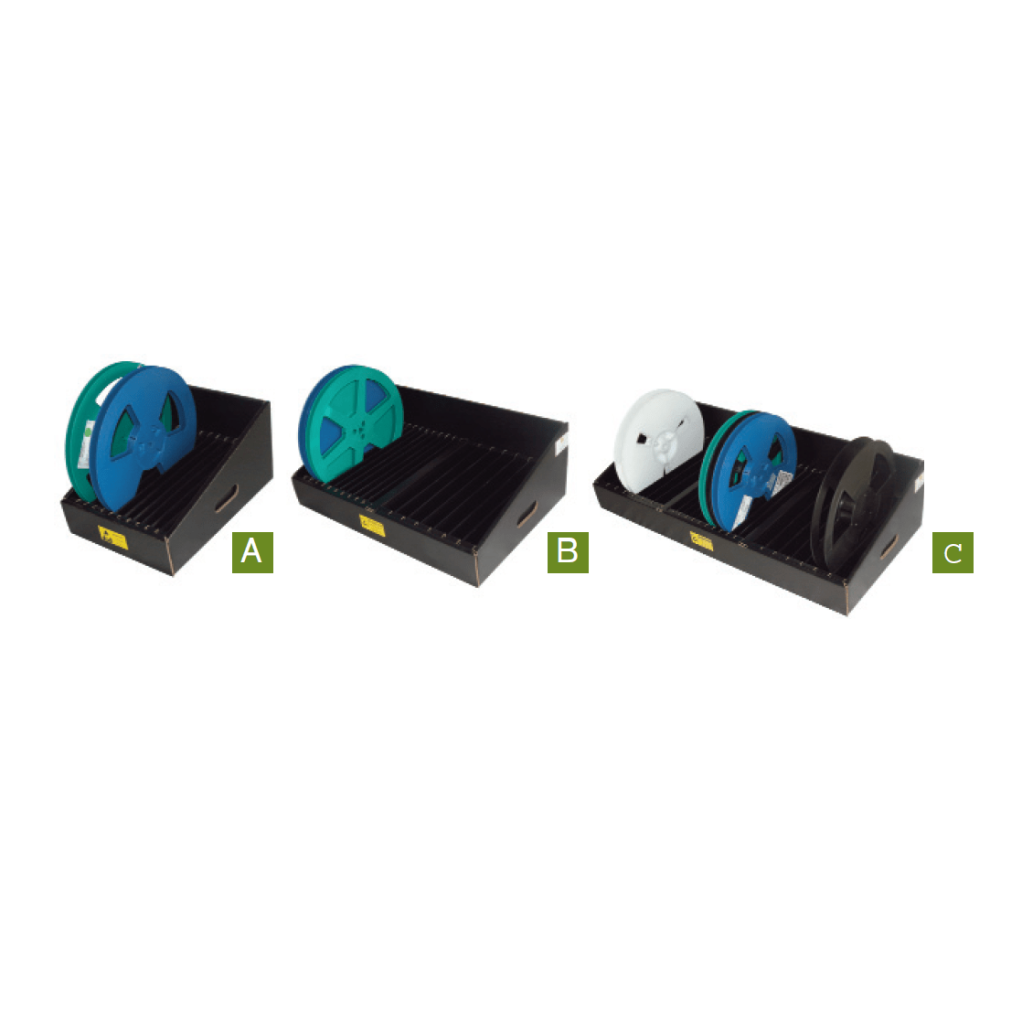

| Key | Description (Sizes in mm) | Height | Width | Length | Front Height | Cell Width | Number of Cells |
| A | Reel Rack 7” Single Unit 18mm slots |
200 | 240 | 273 | 93 | 18 | 11 |
| B | Reel Rack 7” Single Unit 18mm slots |
200 | 240 | 273 | 93 | 32 | 7 |
| Reel Rack 7” Double Unit 18mm slots |
200 | 240 | 573 | 93 | 18 | 22 | |
| Reel Rack 7” Double Unit 32mm slots |
200 | 240 | 573 | 93 | 32 | 14 | |
| C | Reel Rack 7” Triple Unit 18mm slots |
200 | 240 | 860 | 93 | 18 | 33 |
| Reel Rack 7” Triple Unit 18mm slots |
200 | 240 | 860 | 93 | 32 | 21 | |
| Reel Rack 15” Single Unit 18mm slots |
200 | 385 | 273 | 93 | 18 | 11 | |
| Reel Rack 15” Single Unit 32mm slots |
200 | 385 | 273 | 93 | 32 | 7 | |
| Reel Rack 15” Double Unit 18mm slots |
200 | 385 | 573 | 93 | 18 | 22 | |
| Reel Rack 15” Double Unit 32mm slots |
200 | 385 | 573 | 93 | 32 | 14 | |
| Reel Rack 15” Triple Unit 18mm slots |
200 | 385 | 860 | 93 | 18 | 33 | |
| Reel Rack 15” Triple Unit 18mm slots |
200 | 385 | 860 | 93 | 32 | 21 |
